C & Z Purlin

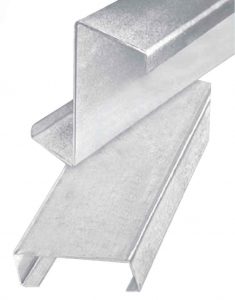

Wide range of C and Z-Purlins are roll-formed from high-tensile zinc coated steel. The cold roll forming process ensures a high degree of consistency and accuracy in the dimension of the sections. The C and Z-Purlins are supplied according to length and pre-punched holes either round or elongated on the webs, thus enabling immediate installation at site.
MATERIAL SPECIFICATION
High Degree of Consistency and Accuracy
FIRE RATING
Class “0” fire rating according to BS 476: Part 6: 1989 “Method of Test for Fire Propagation for Products” & BS 476: Part 7: 1997 “Fire tests on building materials and structures. Method of test to determine the classification of the surfaces spread of flamed of products”.
TOLERANCE
C-Purlins are produced within the following tolerances:
Length: ±5mm
Web (Dim. H): ±3mm
Flange (Dim. B): ±3mm
Hole centres: ±2mm
Thickness: ±0.18mm
QUALITY ASSURANCE
- QUALITY ASSURANCE, COMPETITIVE PRICE, ON THE DELIVERY
- QUALITY PRODUCT WITH PROVEN SUPPLY RECORDS
- HIGH DEGREE OF ACCURACY AND CONSISTENCY IN DIMENSIONS
- DIFFERENT THICKNESS AVAILABILITY TO SUIT CUSTOMER’S NEEDS
- HIGH TENSILE STEEL ; LOW WEIGHT
- PRE-PUNCHED HOLES AND CUSTOM CUT LENGTH
- GREATER STIFFNESS AND STRAIGHTER CLADDING LINES
C-PURLIN: SPECIFICATIONS AND SECTION PROPERTIES
DISCLAIMER: The information on the materials presented herein is provided for informational purposes only. LCK Steel shall not be liable for any loss or damage whatsoever arising from, but not limited to the usage of information provided. Any omission, error, typographical errors and technical inaccuracies relating to the information may be changed or update without notice. Tolerance may occur and they are subject to change and variations in accordance to finished product’s condition. We reserve the right to alter specification and other information without notice.
Z-PURLIN: SPECIFICATIONS AND SECTION PROPERTIES

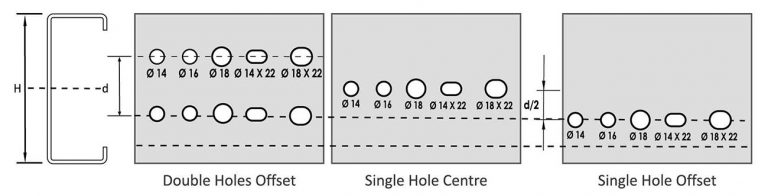

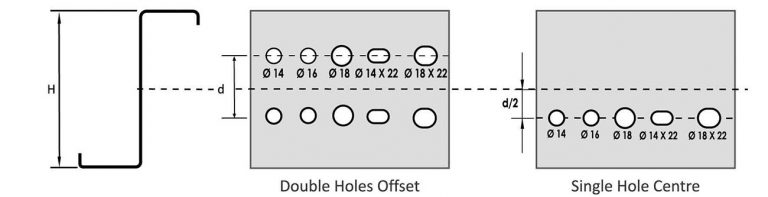

PRE-PUNCHED HOLE ARRANGEMENT AND OPTIONS
Galvanized C and Z-Purlins are manufactured in custom cut lengths. It can be supplied either with or without punched holes. If punched holes are required, the following are pre-punched holes arrangements and option.
DISCLAIMER: The information on the materials presented herein is provided for informational purposes only. LCK Steel shall not be liable for any loss or damage whatsoever arising from, but not limited to the usage of information provided. Any omission, error, typographical errors and technical inaccuracies relating to the information may be changed or update without notice. Tolerance may occur and they are subject to change and variations in accordance to finished product’s condition. We reserve the right to alter specification and other information without notice.

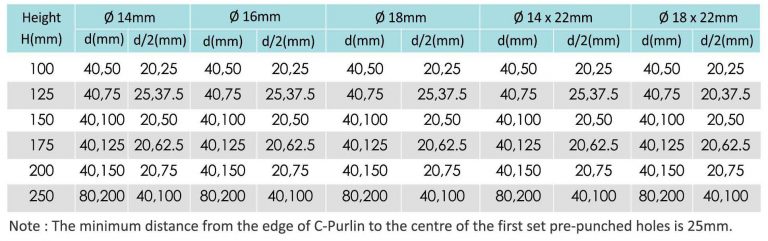

C AND Z-PURLIN: PRE-PUNCHED HOLE ARRANGEMENTS AND OPTIONS

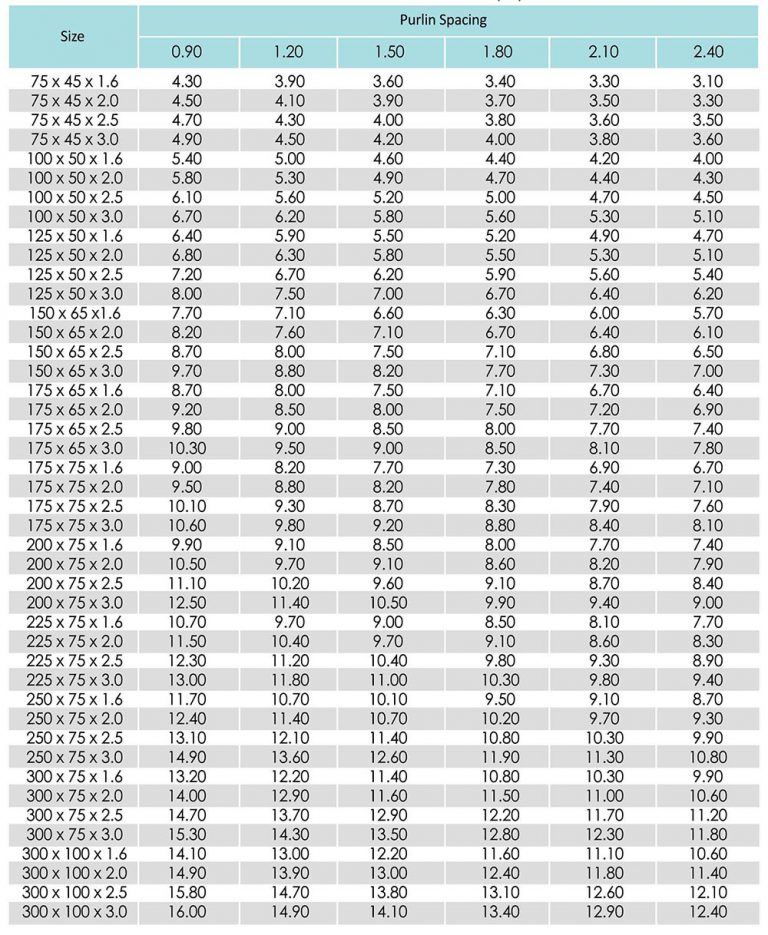

The purlin load table are derived in a accordance to BS5950 : Part 5 : 1987 “Code of Practice for Design of Cold Formed Section” with maximum roof pitch 30° and roofing sheet distributed load 6.55kg/m².
PRECAUTIONS
Contact between galvanized steel and incompatible materials (e.g. Copper tube) must be avoided as premature corrosion could happen. Purlins should be stored of the ground on a slightly sloped position.
DELIVERY, STORAGE AND HANDLING
- Upon delivery, exercise care in unloading, stacking, moving, storing and erecting to prevent twisting, bending, scratching, or denting.
- Store it in a safe, dry environment under a waterproof covering.
- Allow adequate ventilation to prevent condensation.
- Purlins should be stored off the ground on a slightly sloped position.

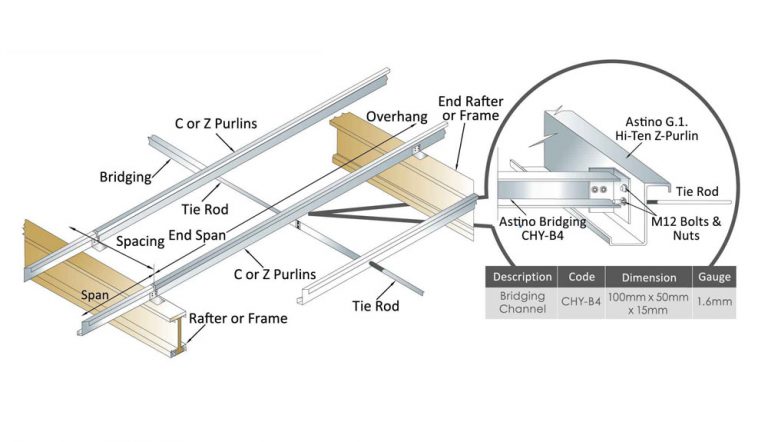

C-PURLIN SIMPLE SPAN SUPPORT DETAILS
PURLIN ACCESSORIES
DISCLAIMER: The information on the materials presented herein is provided for informational purposes only. LCK Steel shall not be liable for any loss or damage whatsoever arising from, but not limited to the usage of information provided. Any omission, error, typographical errors and technical inaccuracies relating to the information may be changed or update without notice. Tolerance may occur and they are subject to change and variations in accordance to finished product’s condition. We reserve the right to alter specification and other information without notice.
